The curb stone sliding mold machine is a fully automatic slipform paver equipment that has been applied in various road constructions in recent years. For a long time, in the field of curbstone construction of urban roads and high-grade roads in China, sand, stone and cement have been prefabricated and paved by manual installation or infusion. The problem with this approach is:

1. It takes a lot of wood or board to use as a template;

2, need to set up a certain prefabricated site, and there is a series of complicated site work before construction;

3, labor intensity, construction speed is slow, the quality of the curb stone laid is also difficult to guarantee.

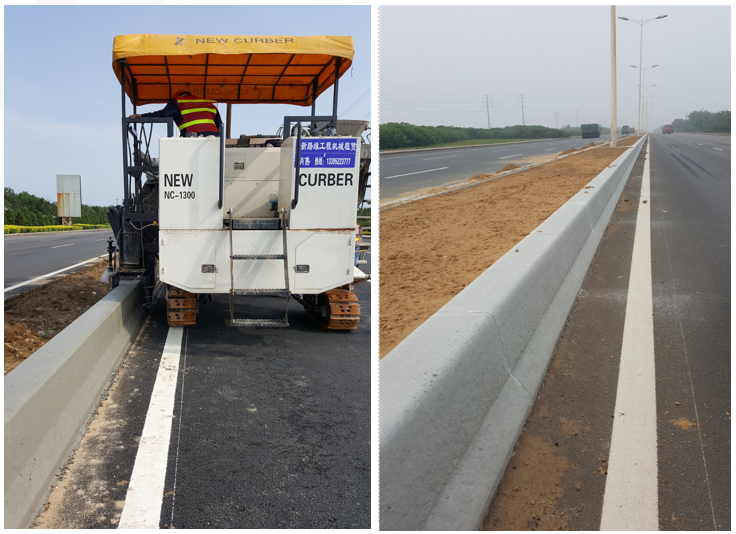

Drainage slipform paving construction.png

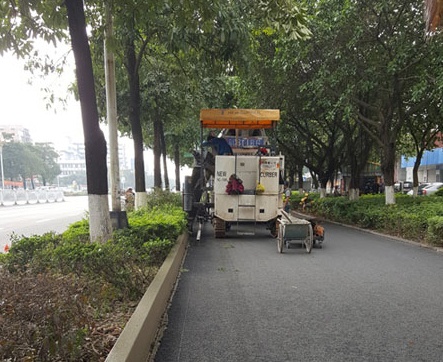

Compared with the previous pre-formed type, the advantage of the curb stone sliding machine is more obvious.

1. The construction of the curb stone sliding mold machine canceled the restrictions of the prefabricated site, saving the cost of site construction and formwork.

2. The curb of the curb stone sliding machine construction has no seams, the line shape is smooth and smooth, and the color is consistent, which makes the appearance of the road more beautiful.

3. The construction of the curb stone sliding mold machine improves the adhesion of the curb and the lower bonding layer, which greatly increases the service life of the curb.

4. The curb of the curb stone sliding machine construction is strong overall, which greatly reduces the damage rate after collision of the vehicle and reduces the maintenance cost.

5. The construction of the curb stone sliding mold machine can be constructed after the completion of the cement stabilized base layer, and then the asphalt concrete is paved to avoid the waste of the asphalt concrete and reduce the cost of the slotting.

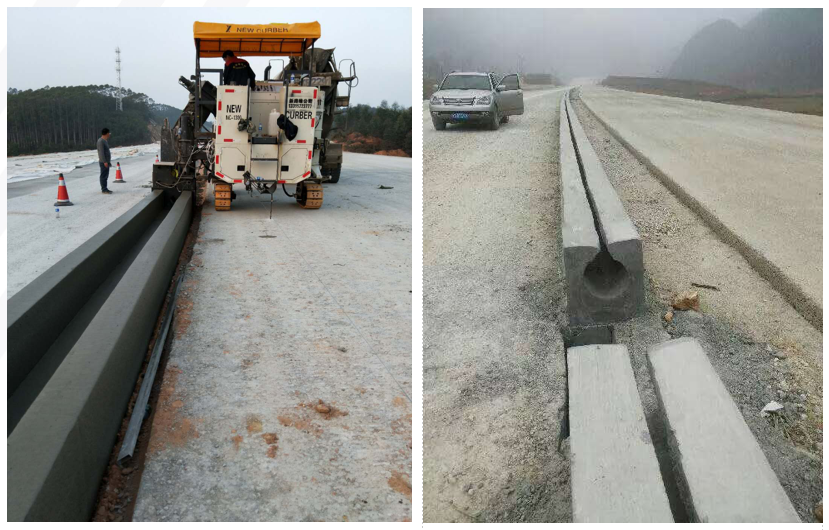

Anti-collision bar construction.jpg

The flexible configuration options allow the NC1300 to fully meet the needs of special conditions, ensuring superior construction efficiency. This flexible and efficient slipform paver has also been used in the Chinese market for a variety of construction applications. In recent years, the mechanized construction method of various shape structures such as anti-collision walls and side trenches by sliding slipper pavers has been increasingly recognized by the market. In the future, more and more ways of replacing manual operations will become the mainstream of construction, and the market prospect is broad.

Fully modular side-sliding sliding mechanism

The anti-collision wall has a side paving height of 1.3m and a sidewalk side paving width of 1.8m, which can be used to spread small-sized concrete structures of various shapes;

The higher the flexibility, the greater the ability

Customized molds can be customized according to customer requirements;

The selected leveler is flexible and adjustable for leveling the foundation before paving;

High performance concrete loading systems offer a wide range of options through conveyor belts or conveyor shafts;

Telescopic side-laying molds that can be mounted on either side of the machine;

Up to 6 electric vibrating rods or hydraulic vibrating rods.
